Document English title:Incoming Inspection Standard For 8”(A)(G080UAN01.0)TFT-LCD Modules

　　1、Lot size:Quantity per shipment lot per model

　　2、sampling type：Normal inspection
，single sampling

　　3、sampling level：level II

　　4、acceptable quality level(AQL)

　　Major defect：AQL=1.0%

　　Major defect：AQL=2.5%

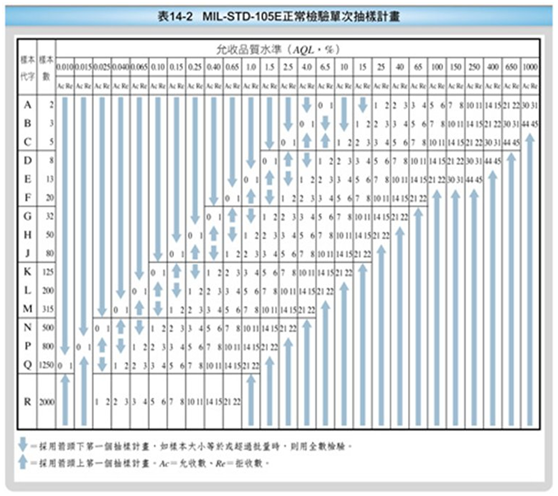

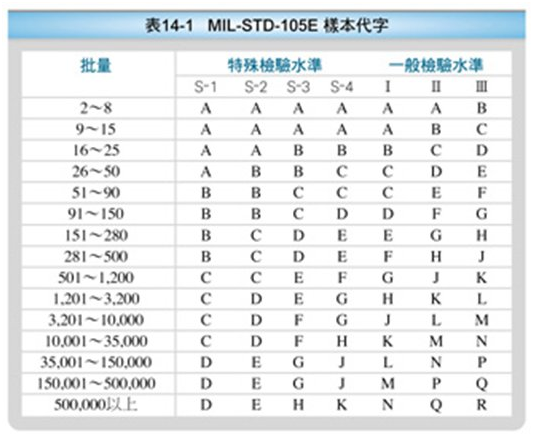

　　Rig.1 Inspection Sampling standard for MIL-STD-105E


Rig.2 Incoming inspection judgment method

　　Inspection instruments：

　　1、 Pattern generator：LD-2000 orequivalent model

　　2、 Video board：AU video board or equivalent
，The output of the signal should comply with the specification provided by AU.

　　3、 Luminance colorimeter:Topcon BM-7 or equivalent model

　　Inspection instruments

　　1、 Room temperature：20~25℃

　　2、 Humidity：65+-5%RH

　　3、 Illumination：Fluorescent light(Day-Light Type)display surface Illumination to be 300~700 lux.(standard 500 lux.)

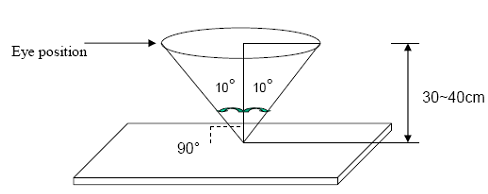

　　4、 To be a distance about 35+-5 cm in front of LCD unit
，viewing line should be perpendicular to the surface of the module judge the visual appearance with human is eyes

　　5、 Take off the protector of polarizer while judging the display area
。

　　6、 If there is any question while judging
，check the panel again while operating

Electrical inspection specification
